Superconducting Qubit Measurement and Control System: The Backbone of High-Fidelity Quantum Computing

In superconducting quantum computing, qubits are extremely fragile—their quantum states degrade rapidly without precise, low-noise manipulation and readout. A high-performance Superconducting Qubit Measurement and Control System is not just auxiliary hardware; it is the critical bridge between room-temperature classical control and millikelvin-level quantum processors, directly determining gate fidelity, qubit coherence, CLOPS, and system scalability.

What Is a Superconducting Qubit Measurement and Control System?

A superconducting qubit measurement and control system (often called QCCS—Quantum Control and Measurement System) is a full-stack electronic and software solution that generates, transmits, synchronizes, and reads microwave and DC signals to initialize, manipulate, measure, and calibrate superconducting qubits.

Core functions include:

Qubit initialization: Preparing qubits to the ground state |0⟩

Gate operation control: Generating nanosecond-scale microwave pulses for single- and two-qubit gates

State readout: Detecting qubit states via cavity-coupled readout pulses

Real-time calibration: Compensating for noise, drift, and crosstalk

Multi-qubit synchronization: Maintaining picosecond-level timing across hundreds of qubits

This system works tightly with dilution refrigerators, quantum chips, and control software to form a complete quantum computing stack.

Core Challenges in Superconducting Qubit Measurement and Control

Building a stable, high-fidelity measurement and control system faces unique hurdles:

Ultra-low noise requirement: Any thermal or electrical noise collapses quantum states; control signals need ultra-high purity and stability.

Picosecond synchronization: Multi-qubit gates demand precise timing across dozens to hundreds of channels.

Fast readout & high fidelity: Readout must be faster than qubit decoherence while achieving >99% fidelity.

Scalability: Wiring complexity, thermal load, and cost rise sharply with qubit count; modular, expandable design is essential.

Cryogenic compatibility: Signals travel from room temperature to ~10–20 mK without excess heat or distortion.

Key Components of a Modern Superconducting Qubit Control System

A full-featured system integrates these modules:

Microwave Control Generators

Produce high-purity, fast-switching microwave pulses for qubit excitation and gate operations; typically with IQ modulation and low phase noise.

Readout Acquisition Units

Downconvert, digitize, and demodulate readout signals; perform real-time state discrimination and return |0⟩/|1⟩ results.

High-Resolution DC Bias Sources

Stable, low-noise DC outputs to tune qubit frequency and coupling strength.

Synchronization & Trigger Module

Provides a shared clock and trigger to ensure sub-nanosecond alignment across all channels.

FPGA-Powered Real-Time Processing

Executes pulse sequences, processes data, and runs automated calibration without host computer lag.

Control Software & Programming Framework

Supports pulse design, experiment automation, qubit characterization, and integration with quantum algorithms.

Why SpinQ’s Integrated Solution Stands Out

To address these challenges, SpinQ has developed a full-stack superconducting quantum computing platform with a built-in high-performance measurement and control system at its core.

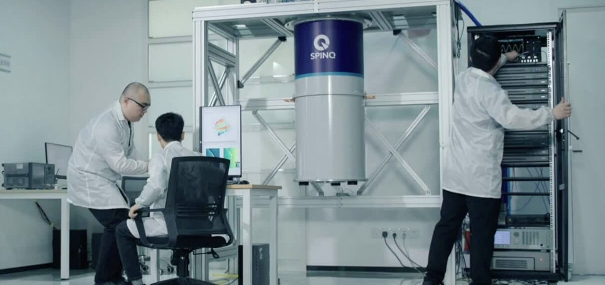

The SPINQ SQC superconducting quantum computer unifies quantum chips, cryogenics, measurement and control electronics, and software into one production-grade platform.

Its measurement and control advantages:

Ultra-high-fidelity gates & long coherence: Optimized pulse shaping and low-noise links preserve qubit lifetime and support quantum chemistry, materials science, and quantum finance workflows.

Sub-100ns gate operations: Fast gates outpace decoherence, boosting CLOPS for practical quantum algorithms.

Modular, scalable design: Easily expand to hundreds of qubits by adding control modules; ideal for lab research and commercial deployment.

Full-stack integration: Includes chip selection, cryogenic installation, control system commissioning, and the SpinQit programming framework.

Industrial-grade quality & cost efficiency: In-house chip manufacturing and custom control electronics deliver consistent performance at accessible cost.

Applications Powered by Superior Measurement and Control

With a robust qubit control system, SPINQ SQC accelerates real-world quantum computing:

Quantum Finance: Portfolio optimization, risk modeling, fraud detection.

Quantum Chemistry & Biomedicine: Molecular simulation, drug discovery, gene data analysis.

Logistics & Supply Chain: Complex routing and resource allocation optimization.

Quantum AI & Machine Learning: Faster training of quantum neural networks and pattern recognition.
